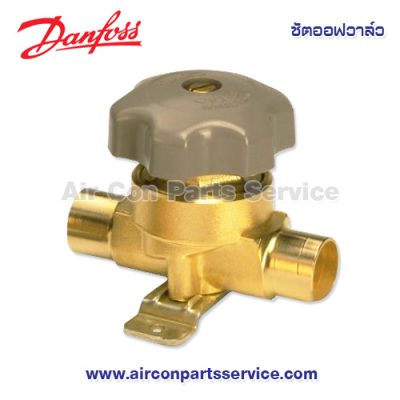

ชัตออฟวาล์ว Danfoss รุ่น BML 12s

SHUT-OFF DIAPHRAGM VALVE

ชัตออฟวาล์ว ยี่ห้อ Danfoss รุ่น BML 12s
Type BML (straightway version with hand wheel)
Code number 009G0142
Connection : ODF Solder 1/2″

SHUT-OFF DIAPHRAGM VALVE Types BML and BMT

BML are manual shut-off diaphragm valve designed for installation in the liquid, suction and hot gas lines of refrigeration plants.
BML valves can be delivered with flare, ODF solder or ODF solder with extended ends.
In the same product category, BMT 6 is a three-way manual shut-off valve with similar characteristics.

FEATURES

• Fitted with three stainless steel diaphragms that prevent leakage throughout the operating
  life of the valve.
• Valve plate of polyamide nylon to give complete shut-off with minimum torque.
• Valve cover with counter-seat to prevent the ingress of moisture.
• Solder versions are compliant with ATEX hazard zone 2.

TECHNICAL DATA

• Refrigerants :
  R134a, R22/R407C, R404A/R507, R32, R290, R600, R600a, R1270, R513A, R450A, R1234ze, R1234yf
• Media Temperature range : -55 – 100 °C
• Max. working pressure : PS/MWP = 28 bar / 406 psig
