Description
ฟิลเตอร์ ดรายเออร์ Danfoss รุ่น DCR 0487s
ELIMINATOR® FILTER DRIER with replaceable solid core
ฟิลเตอร์ ดรายเออร์ Danfoss รุ่น DCR 0487s
Code number 023U7251
Connection : ODF Solder 7/8″

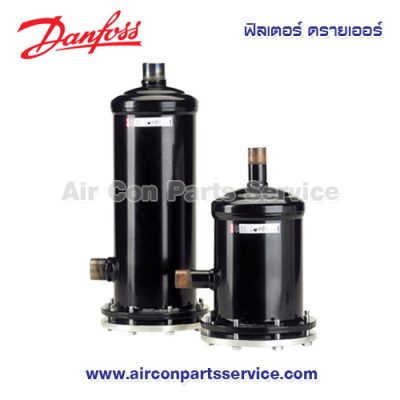

ELIMINATOR® FILTER DRIER with replaceable solid core Type DCR
Danfoss ELIMINATOR® filter driers with replaceable solid core, type DCR, are for use in liquid and / or suction lines in refrigeration, freezing and air-conditioning systems.
Besides being able to meet the demanding requirements of high working pressure levels when operating with R410A, thanks to replaceable solid cores the DCR programme offers flexibility with respect to different applications.
Available with steel and copper connections.
FEATURES
DCR housing :
• UL approved for MWP up to 667 psig.
• DCR housing (incl. core holder) are made entirely of steel and are thus compatible with all refrigerants.
• DCR housings have undergone phosphate pre-treatment and have a corrosion-resistant powder-paint finish.
• DCR housings are helium leak tested.
Top covers for DCR housings :
• Zinc-chromated steel top covers with or without external access connection.
Inserts for DCR housings – strainer.
48 – F strainer – compatible with all refrigerants :
• Retains dirt particles larger than 15 μm.
• For use direct in DCR housings.
• Utilised in the suction or liquid line.
Inserts for DCR housings – solid cores.
48 – DM – 100% molecular sieve solid core suitable for HFC (R134a, R404A, R507, R407C and R410A) refrigerants :
• Provides high moisture adsorption at low and high condensing temperatures.
• Effective protection against impurities.
48 – DC – 80% molecular sieve and 20% activated alumina solid core suitable for HCFC (R22) refrigerants and compatible with HFC (R134a, R404A, R507, R407C and R410A) refrigerants :
• Adsorbs moisture and acid in the system throughout the entire temperature range.
48 – DA – 30% molecular sieve and 70% activated alumina solid core suitable after compressor burnout and compatible with HCFC (R22)/HFC (R134a, R404A, R507, R407C and R410A) refrigerants :
• High acid adsorption and standard water adsorption.
INTRODUCTION
Danfoss ELIMINATOR® filter driers with replaceable solid core, type DCR, protect refrigeration, freezing and air-conditioning systems from moisture, acids, and solid particles.
With these contaminants eliminated, systems are safer from harmful chemical reactions and from abrasive impurities.
