Description

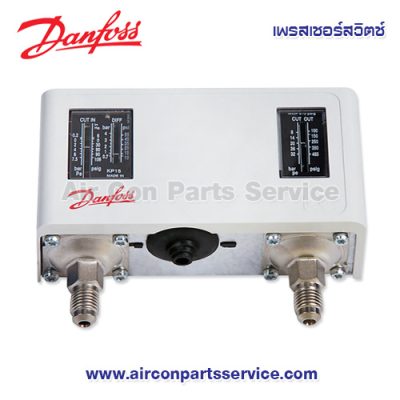

เพรสเชอร์สวิตช์ Danfoss รุ่น KP15
DANFOSS PRESSURE SWITCH
เพรสเชอร์สวิตช์ ยี่ห้อ Danfoss รุ่น KP15
Code number 060-124191
SPECIFICATIONS
• Type KP15
• Low pressure
Regulating range (bar) : -0.2 – 7.5
Differential (bar) : 0.7 – 4
• Hight pressure
Regulating range (bar) : 8 – 32
Differential (bar) : Fixed 4
• Reset
Low pressure : Auto
High pressure : Auto
Pressure switch Type KP15
KP pressure controls are for use in refrigeration and air conditioning systems to give protection against excessively low suction pressure or excessively high discharge pressure.
The controls are also used for starting and stopping refrigeration compressors and fans on air-cooled condensers.
FEATURES
• KP Dual Pressure Controls are available in versions for regulation of high pressure
on both left and right side or regulation of low pressure on left and high pressure on right side
(versions with LP signal or LP+HP signals). Enclosure rating IP30 or IP44.
• Ultra-short bounce time thanks to snap-action function
(reduces wear to a minimum and increases reliability).
• Manual trip function (electrical contact function can be tested without the use of tools).
• Vibration and shock resistant.
• Compact design.
• Fully welded bellows element.
• High reliability both electrically and mechanically.
