ชัตออฟวาล์ว Danfoss รุ่น BML 12
SHUT-OFF DIAPHRAGM VALVE
ชัตออฟวาล์ว ยี่ห้อ Danfoss รุ่น BML 12
Type BML (straightway version with hand wheel)
Code number 009G0141

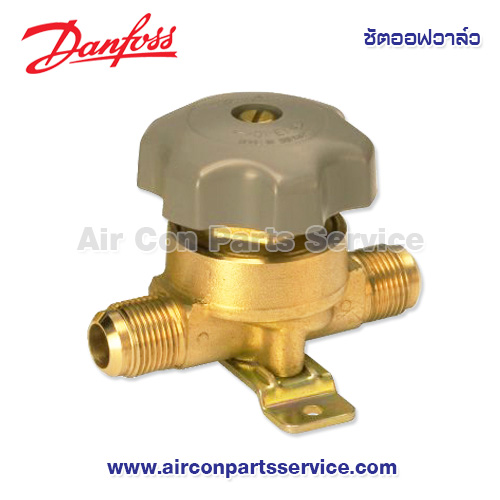

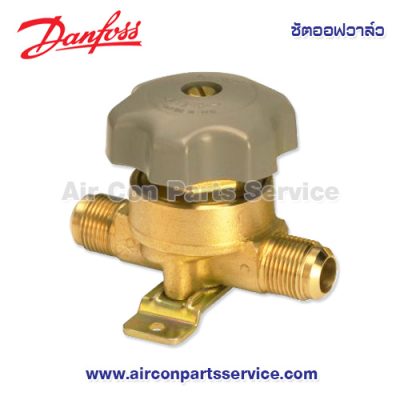

Connection : Flare 1/2″
SHUT-OFF DIAPHRAGM VALVE Types BML and BMT
BML are manual shut-off diaphragm valve designed for installation in the liquid, suction and hot gas lines of refrigeration plants.

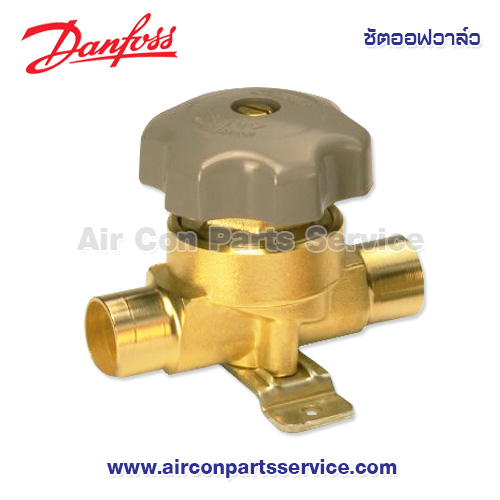

BML valves can be delivered with flare, ODF solder or ODF solder with extended ends.
In the same product category, BMT 6 is a three-way manual shut-off valve with similar characteristics.
• Fitted with three stainless steel diaphragms that prevent leakage throughout the operating
life of the valve.
• Valve plate of polyamide nylon to give complete shut-off with minimum torque.
• Valve cover with counter-seat to prevent the ingress of moisture.
• Solder versions are compliant with ATEX hazard zone 2.
• Refrigerants :
R134a, R22/R407C, R404A/R507, R32, R290, R600, R600a, R1270, R513A, R450A, R1234ze, R1234yf
• Media Temperature range : -55 – 100 °C
• Max. working pressure : PS/MWP = 28 bar / 406 psig
