แมกเนติก คอนแทคเตอร์ Hartland รุ่น HCCE1XU01AAC

Hartland MAGNETIC CONTACTOR

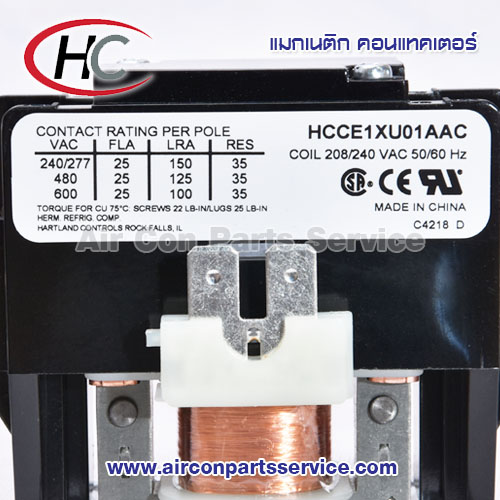

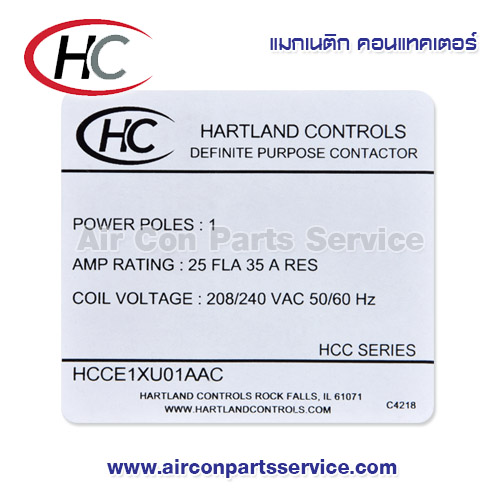

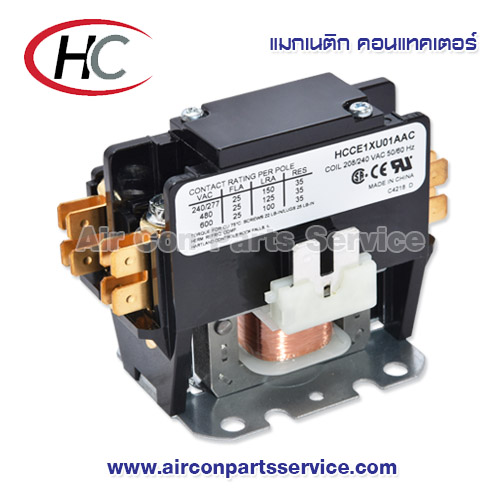

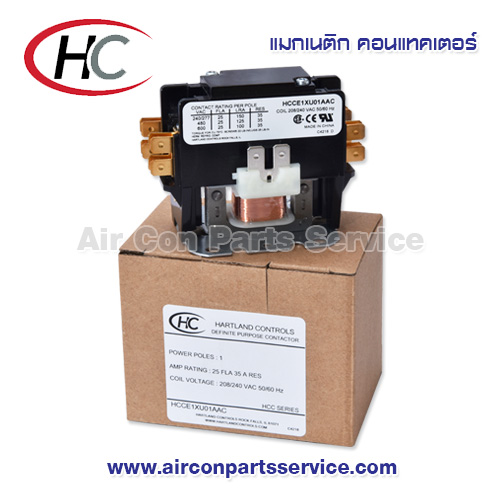

แมกเนติก คอนแทคเตอร์ ยี่ห้อ Hartland รุ่น HCCE1XU01AAC (ขนาด 1 Pole 25 Amp)
อุปกรณ์ควบคุมการตัดต่อวงจรไฟฟ้าของระบบเครื่องปรับอากาศ

1 & 2 pole contactors are typically used in residential applications.
These contactors utilize three wires to control electrical current direction.
Our engineers and quality specialists provide services that meet or exceed customer requirements—all products undergo in-house testing and validation.
We carry extensive domestic inventory to meet delivery schedules.

SPECIFICATIONS

• Initial Dielectric Strength
  Between Contacts & Coils : 2,200 VAC
  Between Poles : 2,200 VAC (includes shunt)
  Between Open Contacts : 2,200 VAC (no shunt)
• Arc Cover
  Optional on 20–30 FLA
  Standard on 40 FLA
• Insulation System
  130°C Class B
• Temperature Range
  -40°C to +65°C
  -40°F to +150°F
• Unit Weight
  1 Pole 8 oz
  2 Pole 9.6 oz
• Power Pole Terminations
  #10-32 screw or box lug
• Wire Size
  #10-32 screw 16-8 (#8 must use ring terminal)
  Box lug 14-4
• Recommended Tightening Torque
  #10-32 screw : 22 in. lbs
  Box lug : 40 in. lbs
• Quick Connects
  Coil terminals :
  Dual : .250″ QC
  Power terminals :
  1 Pole : Dual or Quad .250″ QC
  2 Pole : Dual or Quad .250″ QC
